FIS4-Biological Cell
Four-wave Interferometric Sensor
Applicable: Label-free 3D living cell detection, biological tissue detection, germ cell detection, transparent micro-nano structure detection
◆ 100% domestically developed
◆ Single-path light self-interference, no reference light required
◆ Wide spectrum 400nm~1100nm band
◆ Compact size, plug and play
◆ Suitable for upgrade and expansion of all optical microscopes
◆ Extremely strong vibration resistance, no need for optical vibration isolation
◆ Support LED white light and short-wave infrared light sources
The FIS4 Cell is designed for quantitative phase imaging of biological cells, plug and play. Support near infrared and LED white light spectrum lighting, can be quickly used with any optical microscope, real-time measurement of the 3D phase distribution of the measured cells, for cell volume assessment, weighing is possible, the imaging process does not require marking, staining, 3D imaging in vivo, imaging frame rate of up to 24fps, It is an ideal tool for label-free 3D living cell detection, biological tissue detection, germ cell detection, and micro/nano structure detection.
FIS4 Cell applies the patented technology of random code four-wave diffraction to quantitative phase imaging of cells, without interference objective lens, no phase shift process, high-speed, real-time wave front measurement, with ultra-high vibration resistance and ultra-high stability, providing an ideal sensing tool for measuring, observing and recording living cells.
Easy to adjust
Like an industrial camera
Quick to use
Single optical path, good vibration resistance
No vibration isolation required
Measurement can be done on an ordinary wooden table
Measurement
Repeatability better than
1/1000λ
Compatible
Infrared, ultraviolet
Visible light band
With high-speed camera
can achieve
ultra-high frame rate sampling
One-to-one
guidance
light path construction
Label-free 3D live cell detection optical path
Label-free 3D live cell assay - Paramecium measurement example
Biological tissue detection optical path
3D Live Cell Microscopy - Ascaris Egg Measurement Example
Germ cell detection optical path
Ovarian Granulosa Cell Tumor Measurement Example
Transmissive micro-nanostructure detection optical path

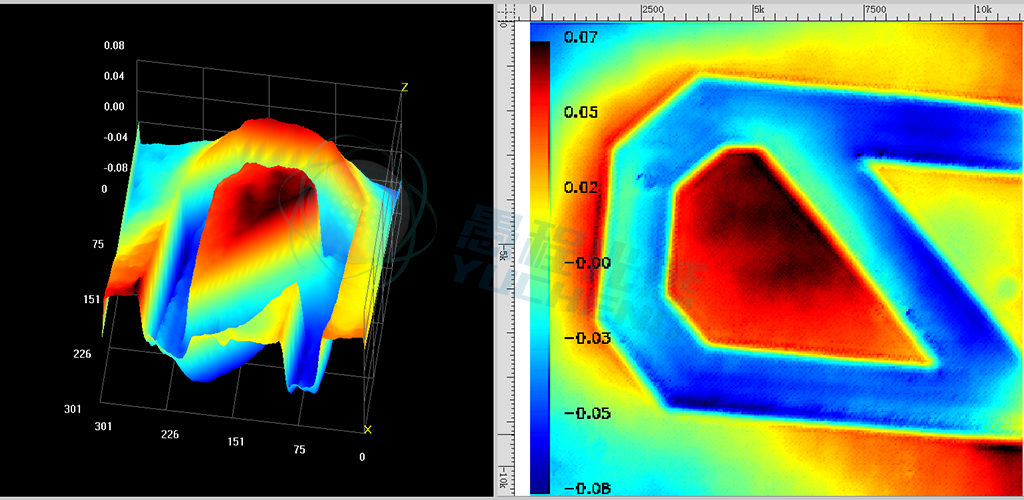

Example of Transmission Micro-Nano Structure Measurement
|
Light Source Type |
LED, halogen lamp and other wide spectrum light sources |
|
Wavelength range |
400~1100nm（for white light） |
|
Target size |
7.07mm×7.07mm |
|
Spatial resolution |
13.8μm |
|
Sampling resolution |
512×512 |
|
Absolute accuracy |
10nmRMS |
|
Phase resolution |
≤2nmRMS |
|
Dynamic range |
≥130μm |
|
Sampling rate |
24fps |
|
Real-time processing speed |
5Hz（Full resolution） |
|
Interface type |
Network interface |
|
dimension |
56.5mmx43mmx41.5mm |
|
weigh |
About 120g |
|
Cooling Method |
None |
◆ Friendly software interface, can automatically generate cell 3D morphology in
real time
◆ Freely select cell detection area
◆ Intelligent cell volume measurement, segmentation, counting and other functions
