Laser beam wavefront detection_wavefront sensor-FIS4

Direct capture of the beam directly or through the beam expansion, so that fast real-time measurement of the laser wave front

Laser wavefront detection technique is an important method to evaluate the phase distortion of laser beam, which will affect the propagation and focusing performance of the beam, and thus affect the overall performance of the laser system. Wavefront detection is critical to the design, testing and performance evaluation of optical systems. By improving the quality of the laser beam, wavefront inspection technology can improve the accuracy and efficiency of laser processing, especially in applications such as laser cutting and welding. The FIS4 four-wave interference sensor can directly capture the beam directly or through the beam expansion, so that the laser wave front can be quickly measured in real time.

Measurement advantage

Complete measurement with a single frame

◆ Wave front distribution

◆ Strength distribution

◆ Beam parameter analysis

High resolution

◆ Up to 512×512 phase sampling points

◆ High dynamic range

◆ Nanoscale sensitivity

Easy to adjust integration

◆ Small and compact

◆ Support parallel and convergent beams

◆ Super vibration resistance

Measurement example

▎Laser beam wavefront detection of optical path

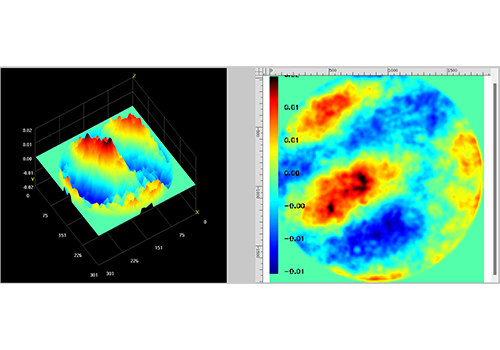

▎Laser beam wavefront detection

Measurement demonstration

Related products

FIS4-High Resolution Four-wave Interferometric Sensor (Refrigerated version)

Wide spectral range (400nm~1100nm) High resolution of 90,000 phase points 2nm RMS High phase resolution

FIS4-Near-Infrared-C Four-wave Interferometric Air-Cooled Sensor

Near infrared spectrum (900nm~1200nm) Ultra-high resolution of 262144 phase points Large dynamic range up to 260μm

FIS4-Ultra High Resolution-C Four-wave Interferometric Air-Cooled Sensor

Supports wide spectral range (400nm~900nm) Ultra-high resolution of 262144 phase points 2nm RMS high phase resolution

FIS4-DPHASE-1 Four-Wave Dynamic Interferometer

High-precision surface shape detection of spherical optical components High-precision surface shape detection of flat optical components No need for vibration isolation, excellent stability and vibration resistance (suitable for high-precision detection in factories)

FIS4-3D living cell microscope

Marker-free 3D living cell imagin Near infrared, LED white wide spectrum lightin Easy to integrate all types of microscopes, plug and play, lightweight and compact

FIS4-Biological Cell Four-wave Interferometric Sensor

Marker-free 3D living cell imaging Near infrared, LED white wide spectrum lighting Easy to integrate all types of microscopes, plug and play, lightweight and compact

FIS4-Ultraviolet Four-wave Interferometric Sensor

Near-ultraviolet spectrum (200nm~400nm) Ultra-high resolution of 262144 phase points Absolute accuracy of 10nmRMS

FIS4-Near-Infrared Four-wave Interferometric Sensor

Near-infrared spectrum (900nm~1200nm) Super high resolution of 262144 phase points Large dynamic range up to 240μm

FIS4-High Resolution Four-wave Interferometric Sensor

Wide spectral range (400nm~1100nm) High resolution of 90,000 phase points 2nm RMS High phase resolution

FIS4-Ultra High Resolution Four-wave Interferometric Sensor

Supports wide spectral range (400nm~900nm) Ultra-high resolution of 172225 phase points 2nm RMS high phase resolution
